Can a Heat Pump Work with Single-Panel Radiators?

Q: Can single-panel radiators work with a heat pump?

Sometimes, in rooms with low heat loss — well-insulated bedrooms or kitchens. In most living rooms and hallways, single panels are too small at heat pump flow temperatures.

Q: Should I upgrade all single-panel radiators?

Not necessarily. The survey identifies which specific radiators need upgrading based on room-by-room heat loss. Some single panels may be adequate in low-demand rooms.

A single-panel radiator rated at 1,000 watts delivers just 290 watts at a 35°C flow temperature. In a well-insulated bedroom needing 400 watts, a large single panel might cope. In a living room needing 1,500 watts, it has no chance. Here is how to assess yours room by room.

By Home Heat Pump GuidePublished: 18 March 2026

Comparison between a single-panel and double-panel convector radiator for heat pump use — Upgrading from a single panel to a Type 22 double-panel convector roughly doubles output in the same wall space

Single-panel (Type 11) radiators were standard in many UK homes built before the 1990s. They deliver about half the output of a double-panel convector, which makes them challenging with heat pumps. See our pillar: do I need new radiators?

Find out if your radiators need upgrading

Get an estimate

Includes radiator assessment. Instant results.

Output at Low Flow Temperatures

Radiator Type	Rated Output (DT50)	At 45°C Flow	At 40°C Flow
Single panel 600x1000mm	~900W	~425W	~340W
Type 22 600x1000mm	~1,800W	~850W	~680W

Approximate values. Actual output varies by manufacturer.

When Single Panels Are Adequate

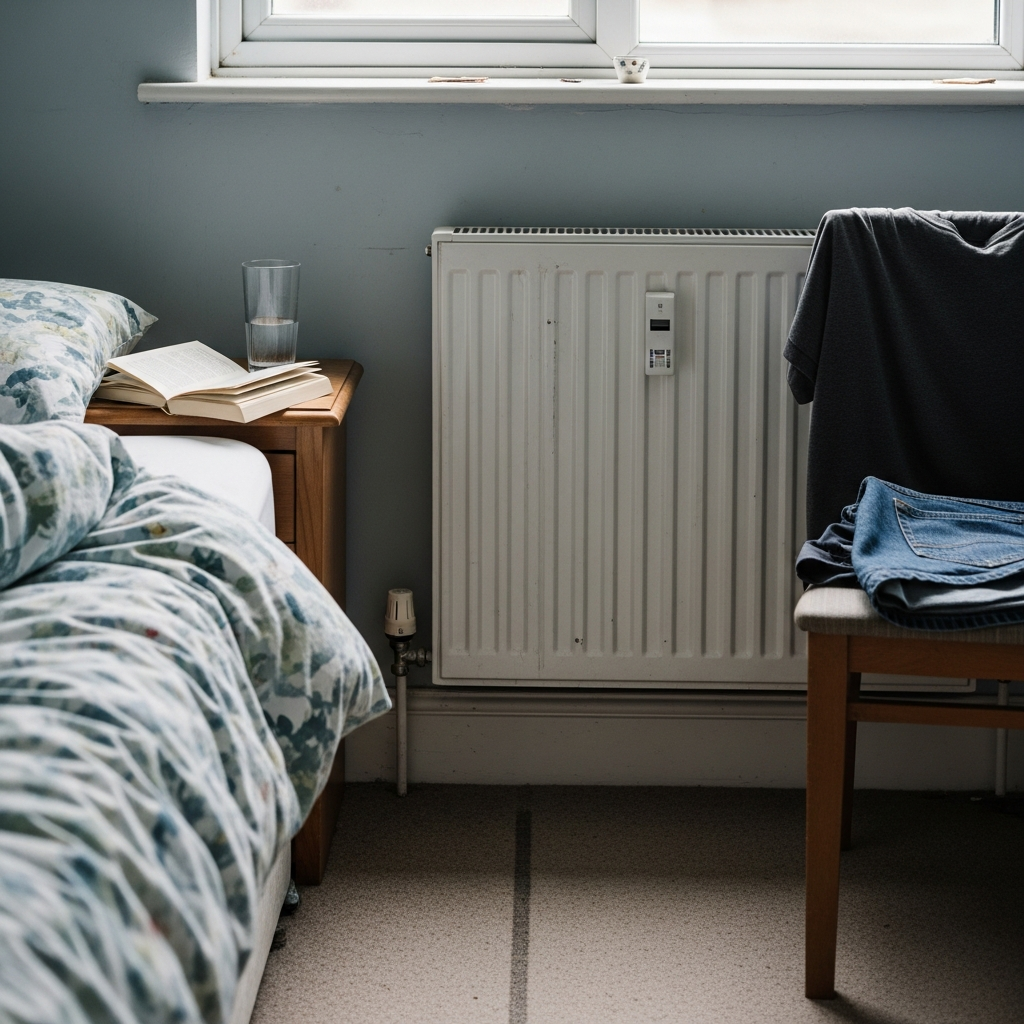

Single-panel radiator in a well-insulated UK bedroom where heat loss is low enough for heat pump operation — In well-insulated bedrooms with low heat loss, a large single-panel radiator may deliver sufficient warmth

Well-insulated rooms with low heat loss (under 400W)
Bedrooms with a target temperature of 18°C (lower than living areas)
Rooms with secondary heat sources (kitchen appliances)

When Upgrades Are Needed

Living rooms with high heat loss
Poorly insulated rooms with large windows
Hallways exposed to front door draughts

Your installer survey identifies exactly which single panels need replacing based on the heat loss calculation.

Upgrade Options

Upgraded Type 22 radiator delivering efficient heat for a heat pump system — A Type 22 replacement uses the same pipework connections — the upgrade is straightforward

Replace with Type 22 double-panel convectors (same wall space, 2x output), fan convectors (3x output, compact), or consider underfloor heating if renovating. Powering your system with solar panels further offsets running costs.

Check if a heat pump suits your home

Request a heat pump quote

Answer a few questions about your home and request a quote.

Calculate your full installation cost

Calculate now

Includes radiator upgrades and the £7,500 grant.

Frequently Asked Questions

Can single-panel radiators work with a heat pump?

Sometimes — in rooms with low heat loss. In most main rooms, they are too small at heat pump flow temperatures.

Should I upgrade all single-panel radiators?

Not necessarily. The survey identifies which ones need replacing based on room-by-room analysis.

Single-panel radiators and heat pumps are a common concern connecting to radiator assessment, flow temperature optimisation, and installation costs. Solar panels reduce running costs regardless of radiator type.
